Fema Marine’s Major Superyacht Refit Projects

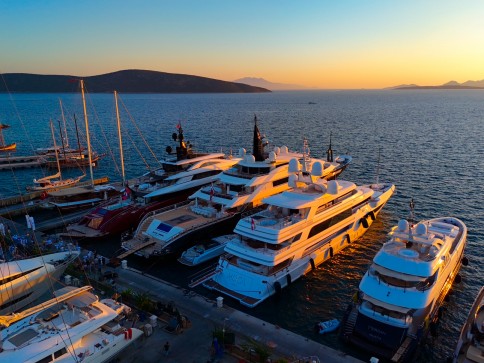

Alfa Nero, Leona, and Moca attracted considerable attention when they arrived all together at the Aganlar Shipyard in Bodrum, Turkey. The Fema Marine team has had a busy schedule with surveys and specialist refit project management and equipment supply. Working across a range of shipyards and manufacturers Fema Marine have overseen the complex refit and repair programmes for two major projects the include an extensive refit of the 72-metre Dunya superyacht Axioma and oversaw the drydock maintenance programme of Alfa Nero.
In April 2024, Axioma arrived at MB92 La Ciotat for a year-long refit that was timely earlier this year. The programme was extensive, covering structural modifications, mechanical overhauls and aesthetic upgrades. Works began with a full drydock period, during which the hull, superstructure, overhead panels and bilges were completely repainted. All hydraulic fittings and equipment were dismantled, serviced and repainted under controlled conditions.
Structural interventions included steel renewal on the forward mooring deck and repairs to the mooring door. All mooring equipment was overhauled, with the hydraulic power packs for the windlasses renewed and recommissioned. The tender garage doors, swim platform, boarding ladders and rescue tender hatch were dismantled for servicing, while hydraulic cylinders, valves and actuators were replaced. The systems were reassembled and recommissioned under the supervision of the original equipment manufacturer, Cramm.
The stabilisation system underwent a complete overhaul, including the removal and servicing of all four Quantum fins and shafts. One fin shaft and its associated components were able to be replaced with all-original parts. Maintenance was also carried out on the bow thruster motor and electronics.
In the engine room, both CAT 3516C main engines and four C9 generators were dismantled to bare block and overhauled with Caterpillar OEM components. Generator silencers and spray nozzles were also replaced. Technical systems were further upgraded with the complete renewal of the freshwater piping and pump network, along with a major overhaul of the AC and HVAC systems, led by Heinen & Hopman. All engine room pumps were replaced, overboard valves removed and tested, and the electrical systems fully inspected. Key switchgear for both generator and shore power systems was renewed.
On deck, the teak was sanded and re-caulked, while the swimming pool received maintenance and a full replacement of associated piping and components. Interior work was carried out by List GC, covering everything from cabinetry and hardware to overhead panels. The laundry deck flooring was replaced with vinyl, and galley appliances, including ovens, washing machines and ice makers, were upgraded. All lighting was converted to LED, and the AV/IT and entertainment systems were fully updated. Water tanks were cleaned, and all fresh water and ballast tanks were repainted.
At the Martinique Shipyard, Fema Marine oversaw the drydock maintenance programme of Alfa Nero in close coordination with her builder, Oceanco. Originally delivered in 2007, the 2500 GT superyacht features exterior design by Nuvolari Lenard and interior by Alberto Pinto. Moreover, Alfa Nero can accommodate 12 guests across six staterooms, as well as 26 crew members including the captain. The project began with antifouling removal through WA2 blasting, followed by the application of new coatings across the underwater hull, including the stabiliser pockets and sea chests. All sacrificial anodes were renewed, including those fitted to the shafts and propellers.
Work on the propulsion and steering systems included the replacement of rudder shaft seals and a full inspection of the main engines and generators by MTU Holland. The starboard engine exhaust system was overhauled, and all three generators underwent major servicing. In the engine room, pumps serving all key systems including fresh, grey and black water were either serviced or replaced. This phase also included the overhaul of the Hamann blackwater treatment system and modifications to the hot water boilers. The HVAC system was upgraded with an overhaul of the compressors and the complete replacement of one unit.
Interior inspections carried out by List Design identified a number of defects, all of which were addressed during the yard period. The elevator window was replaced, teak decking was sanded and cleaned, and both the Jacuzzi and spa systems underwent maintenance. The gasket on the spa shell door was also replaced as part of a broader waterproofing review.
The pool system was comprehensively serviced, including the hydraulic lift, pumps, valves and electronic controls. All anchor winches and windlasses were inspected and overhauled, while seawater valves for the low-temperature cooler were also replaced.
Both projects reflect Fema Marine’s ability to manage the complexity of large yacht maintenance and the planning required to coordinate multiple systems, suppliers and stakeholders. From full-system overhauls to OEM-supervised recommissioning, the company’s role across Axioma and Alfa Nero demonstrates a consistent, detail-driven approach to technical project management in the refit and drydock sector.
Fema Marine, as the official owner of the Antigua & Barbuda Flag Authority, delivers a world-class flag state experience for yacht owners and operators. Renowned for its international credibility, flexible regulations, and strong commercial advantages, this prestigious flag stands out on the global stage. As FEMA Marine Survey, Consultancy, and Management Company, the team of accredited surveyors and managers are also authorized to act on behalf of the Antigua and Barbuda Maritime Authority.
As the Patron Sponsors of the APSA Asia Superyacht Night (Monaco) held at the Novotel Monaco on Tuesday 23 September. Fema Marine looking forward to welcoming clients and friends to APSA’s signature event which leads into the Monaco Yacht Show.
Article By Enrico Chhibber https://www.superyachttimes.com/yacht-news/refit-yacht-management-fema-marine
For more information on Fema Marine contact: Kerim DEMIRKOY at kerim@femamarine.com
